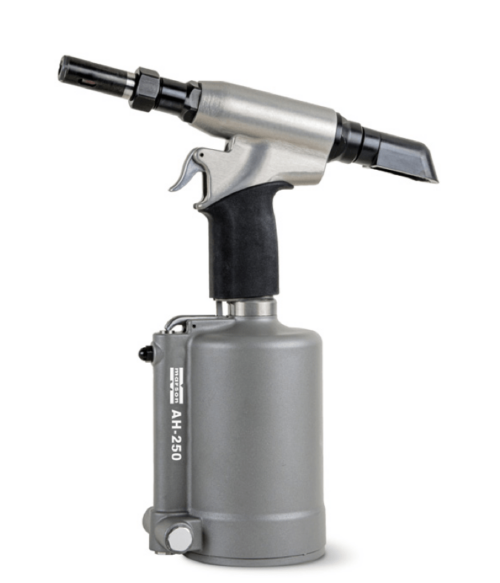

AH250 / M39510 Marson Pneumatic Riveter

Marson AH-250 Pneumatic Installation Rivet Tool (M39150) was designed to be lightweight and well-balanced.  This pneumatic riveter (M39510) installs a wide variety of industrial fasteners using standard Huck® Nose Assemblies. It also uses our new Marson® Universal Nose Assembly (MUNA-8™) that sets many different styles of both Huckbolts and blind rivets. It pulls rivets and fasteners from 5/32″ to 3/8″ in diameter and is a quality and reasonably priced rivet tool for small production jobs.

Marson AH-250 Rivet Tool Features:

  • Capacity: Standard Rivets 5/32” – 1/4”
  • Structural Blind Rivets 5/32″ – 1/4″
  • C6L® and Magna-Grip® 3/16″ – 1/4“
  • Weight: 5.58 lbs.

Huck Nose Assemblies are sold separately.  See below:

99-1456 Huck Nose Assembly pulls 3/16″ Magnagrips

99-1458 Huck Nose Assembly pulls  1/4″ Magnagrips

99-3003 Huck Nose Assembly pulls 3/16″ C6L

99-3487 Huck Nose Assembly pulls 3/16 & 1/4 Magna-loks

Marson Full Line Catalog

AH250 / M39510 Marson Pneumatic Riveter

Marson AH-250 Pneumatic Installation Rivet Tool #M39510

No Ratings - Write a Review

AH250 sets 5/32″ – 1/4″ standard blind rivets, 5/32″ – 1/4″ structural blind rivets, 3/16″ to 1/4″ C6L and Magnagrip Huck Bolts.

MFR Part # AH-250 / M39510
5539510

Categories Air Rivet Guns, Air Rivet Guns

product questions Questions about this product?

Description

Full Description

Marson AH-250 Pneumatic Installation Rivet Tool (M39150) was designed to be lightweight and well-balanced.  This pneumatic riveter (M39510) installs a wide variety of industrial fasteners using standard Huck® Nose Assemblies. It also uses our new Marson® Universal Nose Assembly (MUNA-8™) that sets many different styles of both Huckbolts and blind rivets. It pulls rivets and fasteners from 5/32" to 3/8" in diameter and is a quality and reasonably priced rivet tool for small production jobs.

Marson AH-250 Rivet Tool Features:

  • Capacity: Standard Rivets 5/32” - 1/4”
  • Structural Blind Rivets 5/32" - 1/4"
  • C6L® and Magna-Grip® 3/16" – 1/4“
  • Weight: 5.58 lbs.

Huck Nose Assemblies are sold separately.  See below:

99-1456 Huck Nose Assembly pulls 3/16" Magnagrips

99-1458 Huck Nose Assembly pulls  1/4" Magnagrips

99-3003 Huck Nose Assembly pulls 3/16" C6L

99-3487 Huck Nose Assembly pulls 3/16 & 1/4 Magna-loks

Marson Full Line Catalog

Parameters / Specs

Manufacturer Part Number AH250 / M39510
Pull Pressure 5280
Sets C6L® and Magna-Grip® 3/16" – 1/4“, 5/32" to 1/4" Non-structural and Structural blind rivets
Type Pneumatic
Weight 5.58 LBS

Manuals

Download PDF Brochures & Manuals

Check below for downloadable PDF files of brochures and manuals for the Marson AH-250 Pneumatic Installation Rivet Tool #M39510 - manuals may include general information, operating instructions, or parts lists and repair details.

If we do not currently have a brochure or manual you are trying to find listed below, and you've already tried our resources section without success, call (972) 986-6792 or submit a consultation request for expert assistance.

Brochures

Byler Rivet Brochure AH250 M39510 Marson Tool Manual

Manuals

Questions?

  • Submit Your Question(s) About the Marson AH-250 Pneumatic Installation Rivet Tool #M39510

    Use this quick form to contact our fastening experts for assistance with the Marson AH-250 Pneumatic Installation Rivet Tool #M39510 or request a consultation. You may also call us at (800) 325-3147

  • Requires Captcha

Reviews

Reviews

There are no reviews yet.

Be the first to review “Marson AH-250 Pneumatic Installation Rivet Tool #M39510”

Videos

Videos

Warranty

Warranty Information

Howmet Fastener and Marson provide a 6 month warranty from date of purchase.
