mgp98t magnagrip

A two-piece grade 2 fastener that resists vibration and provides wide grip range fastening. During installation the collar is swaged on to the pin.

Provides a high uniform clamp force with uniform installed values.

We stock the tools, nose assemblies, and drill bits required to set these magnagrips. We also repair Huck tools!

Recommended Tooling

We recommend the Huck 2025 for setting the Huck Magna-Grip.

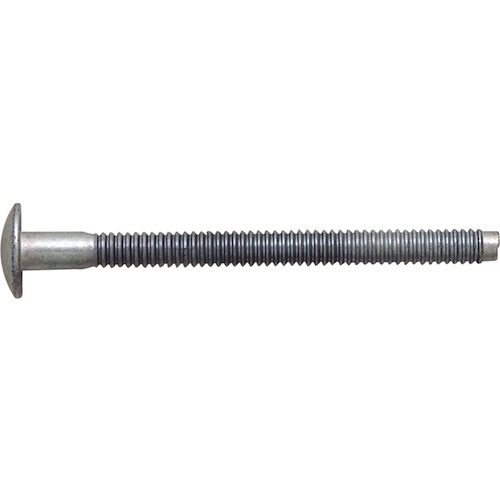

MGP98T-R6-20G Magnagrip Head3/16" Dia.

3/16″ dia., steel, mgp98t head, huck bolt, grip: .312-1.250

MFR Part # MGP98T-R6-20G

Full Description

A two-piece grade 2 fastener that resists vibration and provides wide grip range fastening. During installation the collar is swaged on to the pin.

Provides a high uniform clamp force with uniform installed values.

We stock the tools, nose assemblies, and drill bits required to set these magnagrips. We also repair Huck tools!

Recommended Tooling

We recommend the Huck 2025 for setting the Huck Magna-Grip.

Parameters / Specs

Alloy Material steel
Diameter of Body 3/16"
Grip Range: Total thickness to be fastened .312-1.250
Head Diameter B= .450-.488
Head Height C= .091-.105
Head Style MGP98T
Length of Body D= 2.383
Shear 1725
Tensile 1400
