mgp30-broad-truss-magnagrip

A MGP30-R8-10G Magnagrip Huckbolt is a two-piece Grade 2 fastener that resists vibration and provides wide grip range fastening. During installation the collar is swaged on to the pin.

Magnagrips provide a high uniform clamp force with uniform installed values.

We stock the tools, nose assemblies, and drill bits required to set these magnagrips. We also rent Huck tools and are an authorized Huck Tool Repair Facility!

Call us for all your riveting and fastener needs.

Recommended Tooling

We recommend the Huck 2025 for setting the Huck Magna-Grip.

mgp30-broad-truss-magnagrip
MGP30 Broad Truss Head Huck Bolt for Strength, Locking and Vibration. Lockbolts and Rivets.

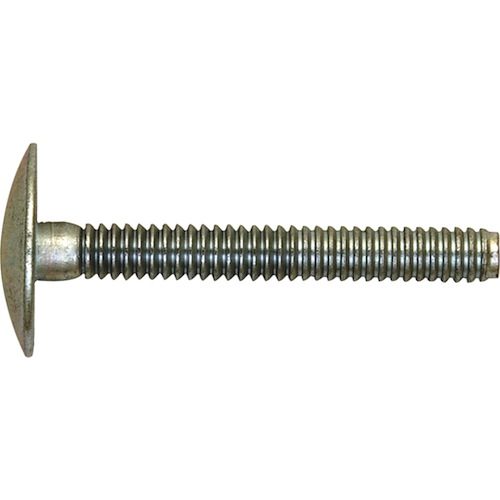

MGP30-R8-10G Magnagrip Broad Truss Head1/4" Dia.

No Ratings - Write a Review

1/4″ dia., steel magnagrip, broad truss head, huck bolt, grip: .156-.625

MFR Part # MGP30-R8-10G
4301200308101

Categories MGP30 Broad Truss Head Magnagrip Huck Bolts / Pins, Magnagrip "MGP30" Broad Truss Head Pins

product questions Questions about this product?

Description

Full Description

A MGP30-R8-10G Magnagrip Huckbolt is a two-piece Grade 2 fastener that resists vibration and provides wide grip range fastening. During installation the collar is swaged on to the pin.

Magnagrips provide a high uniform clamp force with uniform installed values.

We stock the tools, nose assemblies, and drill bits required to set these magnagrips. We also rent Huck tools and are an authorized Huck Tool Repair Facility!

Call us for all your riveting and fastener needs.

Recommended Tooling

We recommend the Huck 2025 for setting the Huck Magna-Grip.

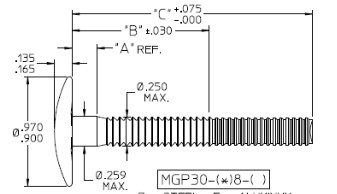

Parameters / Specs

Alloy Material steel
Diameter of Body A= 1/4"
Grip Range: Total thickness to be fastened .156-.625
Head Diameter B= .937
Head Height C= .138-.162
Head Style broad truss hd
Length of Body D= 1.965
Shear 2200
Tensile 2550
