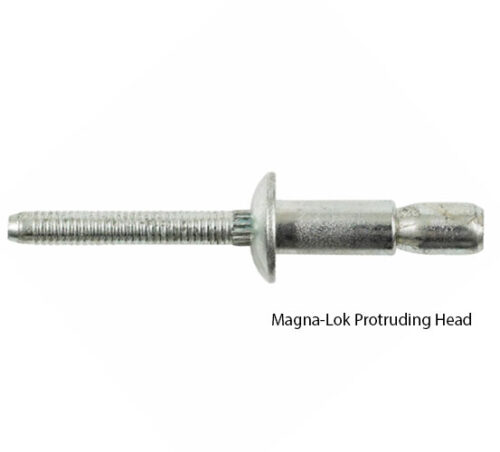

MGLP-R6-4 Magnalok Protruding Head Steel

The steel Magna-lok®, MGLP-R6-4,  is a structural, hole-filling fastener with high shear and tensile, a flush break pin, and a wide grip range.

A unique internal lock permanently locks the pin and sleeve together ensuring resistance to vibration and eliminating pin pushout.

Available in a variety of sizes and in steel, aluminum or stainless steel, the Magna-Lok® is a hole-filling, moisture-resistant fastener that’s used with conventional installation tools. Magna-Lok® rivets are designed with a circle-lock component to ensure proper installation every time. And, because these fasteners were engineered by Huck, you can expect great results. Purchase your Huck Magna-Lok® fasteners now!

We stock the drill bits and the tooling needed to install the Magna-Lok® MGLP-R6-4

Call Byler Rivet for all your riveting and fastener needs.

Resources:

Huck Magnalok Brochure

Recommended Tooling

We recommend the Huck 2025 for setting the Huck BOM.

NOTE: We are an authorized Huck Tool Repair Facility! Tool parts are readily available and in stock!

MGLP-R6-4 Steel Protruding Head Magna-Lok Rivet

3/16″ dia., Steel Magna-lok, protruding head, grip: .062-.270

MFR Part # MGLP-R6-4

Full Description

The steel Magna-lok®, MGLP-R6-4,  is a structural, hole-filling fastener with high shear and tensile, a flush break pin, and a wide grip range.

A unique internal lock permanently locks the pin and sleeve together ensuring resistance to vibration and eliminating pin pushout.

Available in a variety of sizes and in steel, aluminum or stainless steel, the Magna-Lok® is a hole-filling, moisture-resistant fastener that's used with conventional installation tools. Magna-Lok® rivets are designed with a circle-lock component to ensure proper installation every time. And, because these fasteners were engineered by Huck, you can expect great results. Purchase your Huck Magna-Lok® fasteners now!

We stock the drill bits and the tooling needed to install the Magna-Lok® MGLP-R6-4

Call Byler Rivet for all your riveting and fastener needs.

Resources:

Huck Magnalok Brochure

Recommended Tooling

We recommend the Huck 2025 for setting the Huck BOM.

NOTE: We are an authorized Huck Tool Repair Facility! Tool parts are readily available and in stock!

Parameters / Specs

Head Height C= .085
Alloy Material all steel
Diameter of Body A= 3/16"
Grip Range: Total thickness to be fastened .062-.270
Head Diameter B= .385
Head Style protruding head
Tensile 1200
Hole Size .191-.201
Length of Body D= .415
Length of Body Under Head Including Mandrel E= .675
Shear 1300
