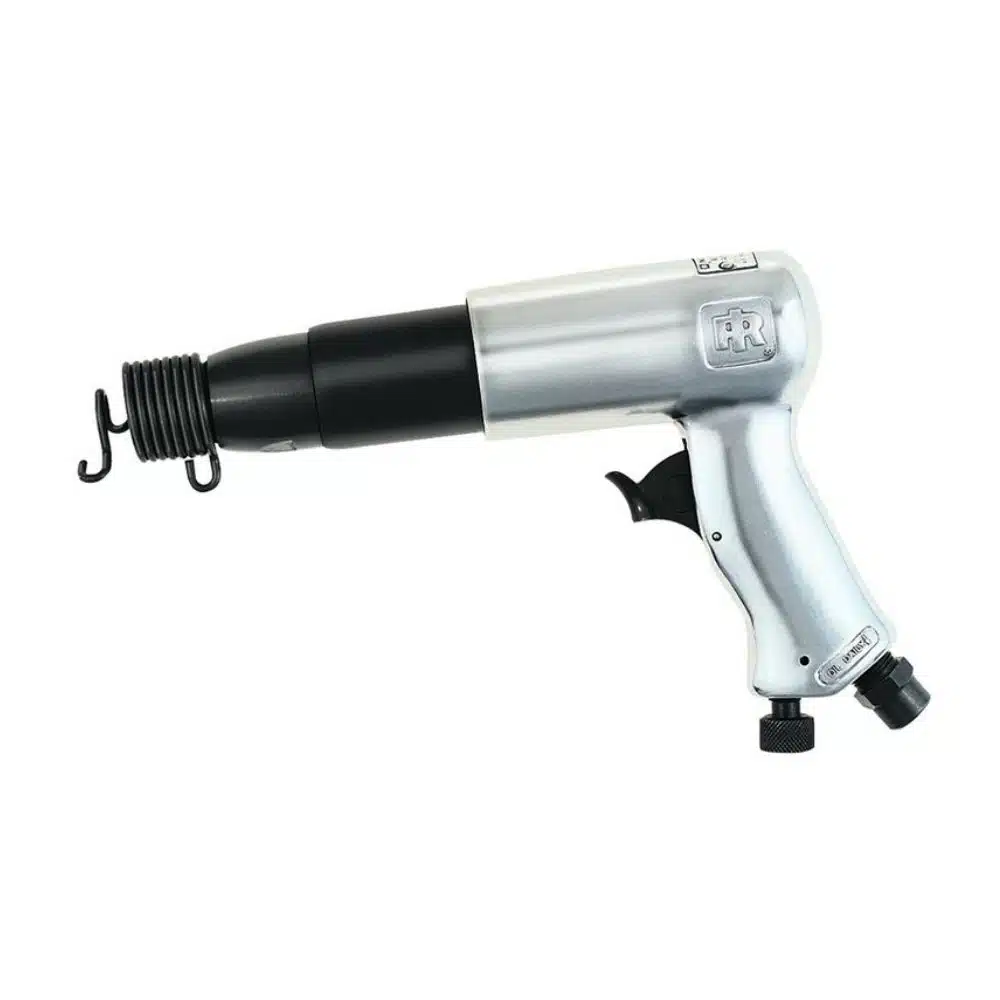

Ingersoll Rand IR 117 Air Hammer

The Ingersoll Rand IR 117 air hammer is a standard air hammer yet has a longer piston stroke than the IR 116 and IR 121. It is designed for exhaust work, bolt cutting, and front end work.

Reliable

Ingersoll Rand promises tools that last, and the IR 117 is no exception – you can count on it to perform the same way every time.

2,000 Blows Per Minute

The IR 117 air hammer has a built-in power regulator that allows you to completely control the speed and power output of your tool.

Longer Life

To ensure a long life for your tool, it has a heat-treated piston and an steel alloyed barrel.

Ingersoll Rand IR 117 Air Hammer

Ingersoll Rand IR 117 Air Hammer

No Ratings - Write a Review

The Ingersoll Rand IR 117 air hammer is a standard air hammer yet has a longer piston stroke than the IR 116 and IR 121. It is designed for exhaust work, bolt cutting, and front end work.

MFR Part # IR 117
6011010117

Categories Air Hammers, Air Hammers

product questions Questions about this product?

Description

Full Description

The Ingersoll Rand IR 117 air hammer is a standard air hammer yet has a longer piston stroke than the IR 116 and IR 121. It is designed for exhaust work, bolt cutting, and front end work.

Reliable

Ingersoll Rand promises tools that last, and the IR 117 is no exception - you can count on it to perform the same way every time.

2,000 Blows Per Minute

The IR 117 air hammer has a built-in power regulator that allows you to completely control the speed and power output of your tool.

Longer Life

To ensure a long life for your tool, it has a heat-treated piston and an steel alloyed barrel.

Parameters / Specs

Air Consumption 3 CFM (85 L / Min)
Air Consumption @ Load 14 CFM (396 L / Min)
Air Inlet NPTF 1/4 in
Blows / Minute 2,000
Bore Diameter 0.69 in (17 mm)
Length 9.9 in (251 mm)
Hose 3/8 in (10 mm) minimum hose size
Shank Round shank opening
Sound Pressure / Power (dBA) 103.5 / 116.5
Stroke 3.5 in (89 mm) stroke length
Vibration M/S2 (Uncertainty K) 9.2 (Uncertainty 3.0)
Weight 4.1 lbs (1.86 kg)
