powerbird gold tool

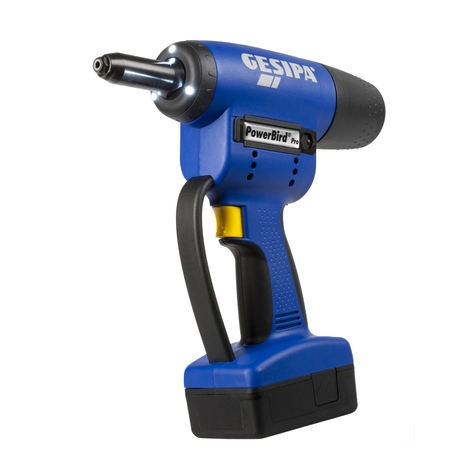

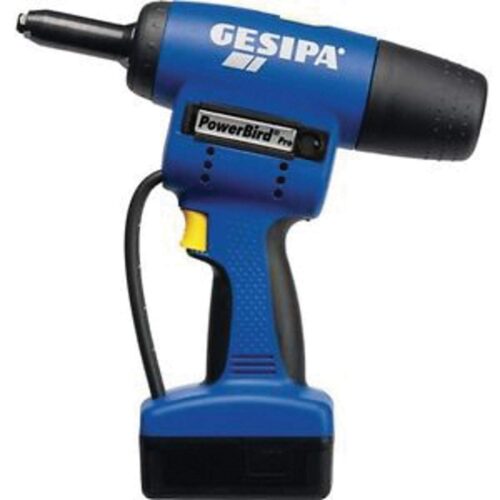

Powerbird ProGold, Cordless Blind Rivet Tool by Gesipa

The Gesipa® PowerBird Pro Gold is a cordless, blind rivet installation tool that pulls 3/16″ & 1/4″ rivets, and 9/32″ bulb-tites. Ready to set 9/32″ bulbtites by adding just the nosetip.

It replaces the RV74G for 9/32″ when you add the 587252237 nose tip (Gesipa part# 1434989). The Powerbird ProGold has 2900 lbs of setting force which enables setting 3/16″ – 1/4″ rivets in all materials, including structural blind rivets.

PowerBird® ProGold, is the all-rounder of the Bird family by GESIPA® with its wide range of application possibilities, is now available in an even stronger version: with a setting force of 18,000 N it can even set G-Bulb and PolyGrip blind rivets up to a diameter of 6.4 mm of all materials.

  • The battery power pack is a rechargeable 18.5 V Li-Ion, 16Ah
  • The Battery Charger is 110V/60Hz with a 60 minute charge time.
  • It replaces the RV74G for 9/32″ when you add the 9/32″ nosetip. #587252237.
  • Gravity controlled evacuation of spent mandrels: forward through the nosepiece or backwards into the mandrel container
  • The immediate and automatic reset after each riveting process saves energy and speeds up the operation
  • Exchange nosepieces and wrench always included in the tool eliminate work interruptions
  • Compact, shockproof tool housing for all application conditions
  • User oriented scope of delivery: plastic carrying case with one battery charger, one battery and four nosepieces
  • Contact Byler Rivet for questions about the Powerbird & Powerbird ProGold.

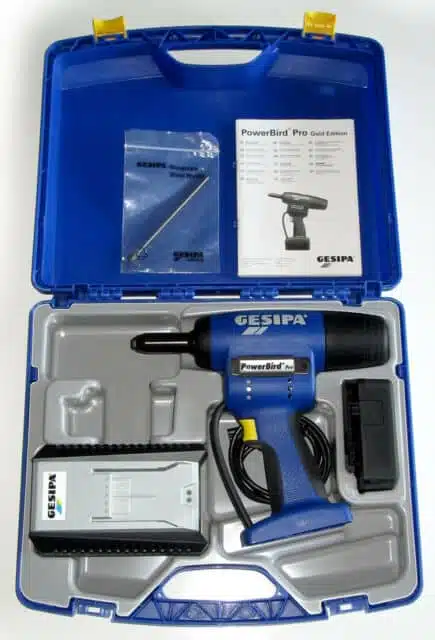

Tool Comes Complete With

  • Plastic carrying case with one 18.5 Volt / 2,6 Ah Li-Ion battery and charger P/N 724 0020
  • Set of jaws (3 parts) for PowerBird® Gold Edition P/N 710 2208
  • and four (4) nosepieces (17/32, 17/36, 17/40 and 17/45)

PowerBird Pro Gold, Cordless Blind Rivet Tool for 3/16" & 1/4" Rivets, & 9/32" Bulb-tites

Gesipa’s PowerBirdPro Gold cordless riveter, pulls 3/16″ & 1/4″ rivets in all alloys & 9/32″ bulb-tites, complete with 18.5 V Li-Ion battery.

MFR Part # 1457637 or 730003

Full Description

Powerbird ProGold, Cordless Blind Rivet Tool by Gesipa

The Gesipa® PowerBird Pro Gold is a cordless, blind rivet installation tool that pulls 3/16" & 1/4" rivets, and 9/32" bulb-tites. Ready to set 9/32" bulbtites by adding just the nosetip.

It replaces the RV74G for 9/32" when you add the 587252237 nose tip (Gesipa part# 1434989). The Powerbird ProGold has 2900 lbs of setting force which enables setting 3/16" - 1/4" rivets in all materials, including structural blind rivets.

PowerBird® ProGold, is the all-rounder of the Bird family by GESIPA® with its wide range of application possibilities, is now available in an even stronger version: with a setting force of 18,000 N it can even set G-Bulb and PolyGrip blind rivets up to a diameter of 6.4 mm of all materials.

  • The battery power pack is a rechargeable 18.5 V Li-Ion, 16Ah
  • The Battery Charger is 110V/60Hz with a 60 minute charge time.
  • It replaces the RV74G for 9/32" when you add the 9/32" nosetip. #587252237.
  • Gravity controlled evacuation of spent mandrels: forward through the nosepiece or backwards into the mandrel container
  • The immediate and automatic reset after each riveting process saves energy and speeds up the operation
  • Exchange nosepieces and wrench always included in the tool eliminate work interruptions
  • Compact, shockproof tool housing for all application conditions
  • User oriented scope of delivery: plastic carrying case with one battery charger, one battery and four nosepieces
  • Contact Byler Rivet for questions about the Powerbird & Powerbird ProGold.

Tool Comes Complete With

  • Plastic carrying case with one 18.5 Volt / 2,6 Ah Li-Ion battery and charger P/N 724 0020
  • Set of jaws (3 parts) for PowerBird® Gold Edition P/N 710 2208
  • and four (4) nosepieces (17/32, 17/36, 17/40 and 17/45)

Parameters / Specs

Type Cordless riveter; Battery operated
Battery Charger Charger 18.5V Li-Ion
Power Pack 14.4 V/1.3 Ah (Li-Ion) rechargeable
Stroke .79 in. (20mm)
Traction Power 1800N
Weight 2.2 kg incl. battery
Jaws Jaws (3 parts) Part no. 710 2208
