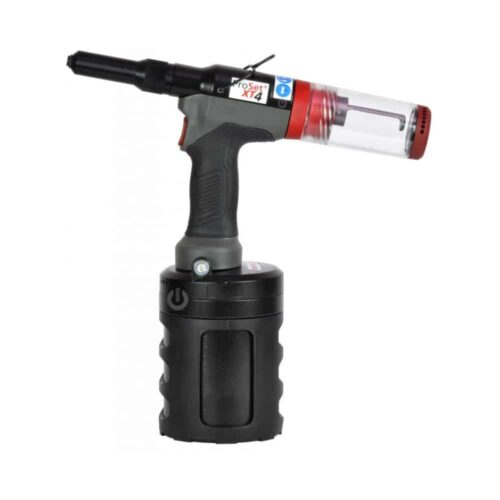

POP Proset XT4 POP Rivet Gun

Coming in at a weight of just over 4 lbs (about 2 kg), the POP ProSet XT4 POP rivet gun has the title of strongest air rivet gun providing you with 23 kN – delivering the highest pull-force available from POP’s Proset family of POP rivet guns. Because of this, the XT4 model sets structural breakstem rivets, as well as installation of Avdelok, Maxlok and Avtainer lockbolts.

When it comes to range, you’ll be happy to know this POP rivet gun can set 4.0mm (5/32″) to 6.4mm (1/4″) diameter rivets in all materials, as well as 4.8mm (3/16″) to 6.4mm (1/4″) diameter lockbolts and 6.0mm to 12.0mm diameter sealing plugs with additional nose assembly (see: rivet gun nose pieces.

This air / pneumatic riveter features hydraulic-damping for smooth operation which helps reduce operator fatigue, and an ultra-high tensile piston rod which extends the longevity and reliability for maximum tool life. As with all POP Proset XT series riveters, the XT4 is based on an innovative, ergonomic design achieving maximized user comfort and over all efficiency.

Questions About the Proset XT4 POP Rivet Gun?

If you have questions about the XT4 or any of our other POP rivet guns, then request a consultation or call the POP tools experts at (972) 986-6792 for assistance!

Need Proset XT4 Spare Parts or Repair Services?

If your Proset XT4 isn’t functioning properly, then check out our rivet gun parts and repair services.

POP Proset XT4 Rivet Gun

Coming in at a weight of just over 4 lbs (about 2 kg), the POP ProSet XT4 has the title of strongest air rivet gun providing you with 23 kN – delivering the highest pull-force available from POP’s Proset family of POP rivet guns.

MFR Part # 76004-00003 - XT4

Full Description

Coming in at a weight of just over 4 lbs (about 2 kg), the POP ProSet XT4 POP rivet gun has the title of strongest air rivet gun providing you with 23 kN - delivering the highest pull-force available from POP's Proset family of POP rivet guns. Because of this, the XT4 model sets structural breakstem rivets, as well as installation of Avdelok, Maxlok and Avtainer lockbolts.

When it comes to range, you'll be happy to know this POP rivet gun can set 4.0mm (5/32") to 6.4mm (1/4") diameter rivets in all materials, as well as 4.8mm (3/16") to 6.4mm (1/4") diameter lockbolts and 6.0mm to 12.0mm diameter sealing plugs with additional nose assembly (see: rivet gun nose pieces.

This air / pneumatic riveter features hydraulic-damping for smooth operation which helps reduce operator fatigue, and an ultra-high tensile piston rod which extends the longevity and reliability for maximum tool life. As with all POP Proset XT series riveters, the XT4 is based on an innovative, ergonomic design achieving maximized user comfort and over all efficiency.

Questions About the Proset XT4 POP Rivet Gun?

If you have questions about the XT4 or any of our other POP rivet guns, then request a consultation or call the POP tools experts at (972) 986-6792 for assistance!

Need Proset XT4 Spare Parts or Repair Services?

If your Proset XT4 isn't functioning properly, then check out our rivet gun parts and repair services.

Parameters / Specs

Weight 4.77 lbs
Weight 4.77 lbs
Air Supply Pressure (dry, filtered) 5.0 – 7.0 bar
Cycle Time 1 second
Force / Weight Ratio 10.65 kN/kg
Noise Level 77.9 dB
Sets 4.0mm (5/32") to 6.4mm (1/4") rivets in all materials, 4.8mm (3/16") to 6.4mm (1/4") lockbolts, 6.0mm to 12.0mm sealing plugs

Download PDF Brochures & Manuals

Check below for downloadable PDF files of brochures and manuals for the POP Proset XT4 Rivet Gun - manuals may include general information, operating instructions, or parts lists and repair details.

If we do not currently have a brochure or manual you are trying to find listed below, and you've already tried our resources section without success, call (972) 986-6792 or submit a consultation request for expert assistance.

Brochures

Manuals

  • Submit Your Question(s) About the POP Proset XT4 Rivet Gun

    Use this quick form to contact our fastening experts for assistance with the POP Proset XT4 Rivet Gun or request a consultation. You may also call us at (800) 325-3147

  • Requires Captcha

Reviews

There are no reviews yet.

Be the first to review “POP Proset XT4 Rivet Gun”

Videos

Warranty Information

No warranty information available. Questions? Call our fastener experts at 972-986-6792.

Download Warranty
