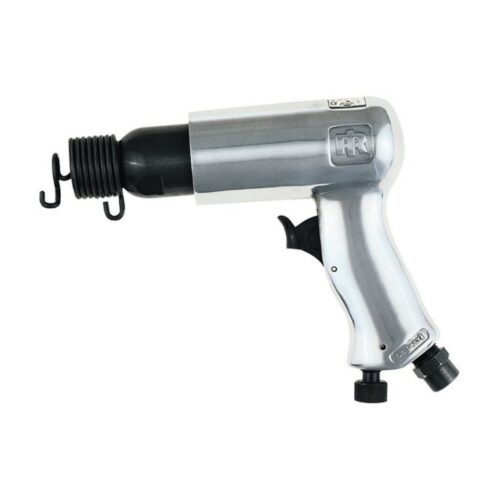

Ingersoll Rand IR 116 Air Hammer

The Ingersoll Rand IR 116 air hammer is a standard air hammer that’s ideal for fast cutting action – it excels in medium exhaust systems, panel cutting, and general repair work.

Reliable

The IR 116 hammer’s steel alloy barrel and heat-treated piston prolong tool life and make sure it delivers the same quality output every time.

Lightweight

Built for user comfort, the IR 116 tool is lightweight and easy to use, so you never have to over-exert yourself when working a job.

Power

With the IR 116’s built-in power regulator you have full control over the speed and power output of the hammer – it allows up to 3,500 blows per minute.

Ingersoll Rand IR 116 Air Hammer

The Ingersoll Rand IR 116 air hammer is a standard air hammer that’s ideal for fast cutting action – it excels in medium exhaust systems, panel cutting, and general repair work.

MFR Part # IR 116

Full Description

The Ingersoll Rand IR 116 air hammer is a standard air hammer that's ideal for fast cutting action - it excels in medium exhaust systems, panel cutting, and general repair work.

Reliable

The IR 116 hammer's steel alloy barrel and heat-treated piston prolong tool life and make sure it delivers the same quality output every time.

Lightweight

Built for user comfort, the IR 116 tool is lightweight and easy to use, so you never have to over-exert yourself when working a job.

Power

With the IR 116's built-in power regulator you have full control over the speed and power output of the hammer - it allows up to 3,500 blows per minute.

Parameters / Specs

Air Consumption 3 CFM (85 L / Min)
Air Consumption @ Load 15 CFM (425 L / Min)
Air Inlet NPTF 1/4 in
Blows / Minute 3,500
Bore Diameter 0.69 in (17.5 mm)
Length 7.8 in (198 mm)
Hose 3/8 in (10 mm) minimum hose size
Shank Round shank opening
Sound Pressure / Power (dBA) 104.4 / 117.4
Stroke 2.63 in (67 mm) stroke length
Vibration M/S2 (Uncertainty K) 14.8 (Uncertainty 2.2)
Weight 3.4 lbs (1.54 kg)
