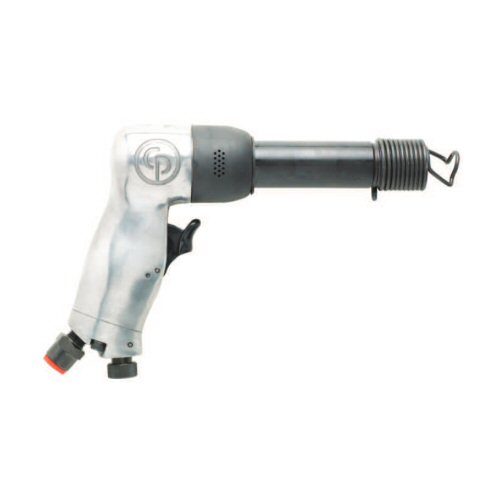

Chicago Pneumatic CP714 Air Hammer, .401 Shank (Heavy Duty Air Hammer)

The Chicago Pneumatic CP714 Air Hammer, .401 Shank (Heavy Duty Air Hammer) for automotive, truck and off road equipment with .401 shank. This is the most controllable Chicago Pneumatic air hammer available – has an extra sensitive tease throttle because of its spool valve which controls starts and stops.

Benefits / Use

  • High durability
  • Operator comfort
  • Versatile, handling different type of environments

Features

  • .401″ round shank
  • Ergonomic oriented handle
  • Heavy duty pistol grip hammer
  • Positive action trigger for precise control
  • Speed regulator

Specifications

  • Blows per minute: 2000
  • Bore diameter: 1/4-Inch
  • Chisel shank opening: .401-Inch
  • Hose size: 3/8-Inch
Chicago Pneumatic CP714 Air Hammer, .401 Shank (Heavy Duty Air Hammer)

Chicago Pneumatic CP714 Air Hammer, .401 Shank (Heavy Duty Air Hammer)

No Ratings - Write a Review

The Chicago Pneumatic CP714 Air Hammer, .401 Shank (Heavy Duty Air Hammer) for automotive, truck and off road equipment with .401 shank.

MFR Part # CP714
6021010714

Categories Air Hammers, Air Hammers

product questions Questions about this product?

Description

Full Description

The Chicago Pneumatic CP714 Air Hammer, .401 Shank (Heavy Duty Air Hammer) for automotive, truck and off road equipment with .401 shank. This is the most controllable Chicago Pneumatic air hammer available - has an extra sensitive tease throttle because of its spool valve which controls starts and stops.

Benefits / Use

  • High durability
  • Operator comfort
  • Versatile, handling different type of environments

Features

  • .401" round shank
  • Ergonomic oriented handle
  • Heavy duty pistol grip hammer
  • Positive action trigger for precise control
  • Speed regulator

Specifications

  • Blows per minute: 2000
  • Bore diameter: 1/4-Inch
  • Chisel shank opening: .401-Inch
  • Hose size: 3/8-Inch

Parameters / Specs

Actual air consumption 241 l/mn/ (8.5 CFM Imperial / Standard)
Air Inlet NPTF 1/4 in
Average air consumption 60 l/mn (2.13 CFM Imperial / Standard)
Blows / Minute 2000
Bore Diameter 14mm (9/16" Imperial / Standard)
Chisel rivet set shank 10.2mm (0.401" Imperial / Standard)
Cold rivet capacity 6.4mm (1/4" Imperial / Standard)
Cold rivet capacity (steel) 4.8mm (3/16" Imperial / Standard)
Hose 10mm (3/8" Imperial / Standard)
Length 190mm (7.5" Imperial / Standard)
Power (Joules) 4.7
Shank Round shank opening
Sound Power 106 db(A)
Sound Pressure / Power (dBA) 95 db(A)
Stroke 80mm (3.5" Imperial / Standard)
Vibration M/S2 (Uncertainty K) 13.18 m/s² (5.81 m/s² Uncertainty K)
Vibration ISO ISO-28927-9
Weight 1.51kg (3.33lb Imperial / Standard)
