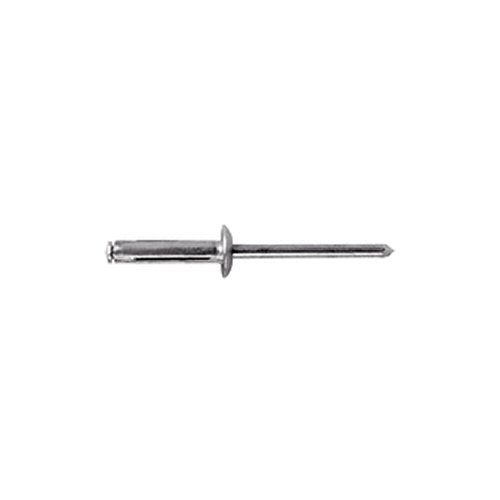

Klamp-Tite Non-Structural Bulb-Tite Rivet, 3/16", 1/4" (4.8 mm, 6.4 mm)

The Avdel Klamp-Tite non-structural bulb-tite rivet in aluminium has a large blind-side bearing area making it an ideal rivet for use in thin sheet or low strength materials. The Klamp-Tite rivet is also available as a structural product, containing a visible mechanical lock to give extra strength to the joint. Structural and non-structural Klamp-Tite fasteners are ideal rivets for plastic assembly.

Key Features

  • Ideal for use in thin sheet materials offering high resistance to pull-out loads
  • Ideal for use in very soft or brittle materials
  • Multi-grip capability accommodates wide variations in material thickness
  • Retained stem provides very strong, vibration resistant joints avoiding problems caused by loose stems
  • Split tail formation spreads the tail bearing load/clamp load on the rear sheet

Assembly Applications

  • Automotive plastic assemblies
  • Caravans and recreational vehicles
  • Domestic appliances
  • Plastic components

Specifications

  • Headform: Protruding
  • Material: Aluminium alloy
  • Sizes: 4.8 mm and 6.4 mm (3/16″ and 1/4″)

Note: We will confirm which sizes you need when providing a quote.

Klamp-Tite Non-Structural Bulb-Tite Rivet, 3/16", 1/4" (4.8 mm, 6.4 mm)

The Avdel Klamp-Tite non-structural bulb-tite rivet in aluminium has a large blind-side bearing area making it an ideal rivet for use in thin sheet or low strength materials. The Klamp-Tite rivet is also available as a structural product, containing a visible mechanical lock to give extra strength to the joint. Structural and non-structural Klamp-Tite fasteners are ideal rivets for plastic assembly.

MFR Part # Klamp-Tite Non-Structural

Full Description

The Avdel Klamp-Tite non-structural bulb-tite rivet in aluminium has a large blind-side bearing area making it an ideal rivet for use in thin sheet or low strength materials. The Klamp-Tite rivet is also available as a structural product, containing a visible mechanical lock to give extra strength to the joint. Structural and non-structural Klamp-Tite fasteners are ideal rivets for plastic assembly.

Key Features

  • Ideal for use in thin sheet materials offering high resistance to pull-out loads
  • Ideal for use in very soft or brittle materials
  • Multi-grip capability accommodates wide variations in material thickness
  • Retained stem provides very strong, vibration resistant joints avoiding problems caused by loose stems
  • Split tail formation spreads the tail bearing load/clamp load on the rear sheet

Assembly Applications

  • Automotive plastic assemblies
  • Caravans and recreational vehicles
  • Domestic appliances
  • Plastic components

Specifications

  • Headform: Protruding
  • Material: Aluminium alloy
  • Sizes: 4.8 mm and 6.4 mm (3/16" and 1/4")

Note: We will confirm which sizes you need when providing a quote.

Parameters / Specs

Alloy Material Aluminum
Sizes 4.8 mm and 6.4 mm (3/16" and 1/4")
