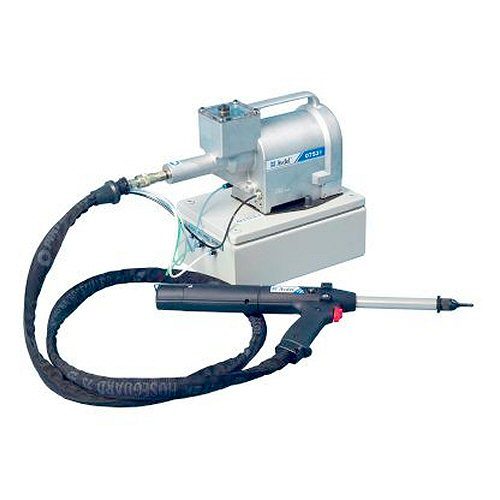

Avdel 7536 Speed Fastening Tool

The Avdel 7536 Air Rivet Gun / Speed Fastening Tool sets 1.6mm (1/16″) Avlug® speed fasteners at high-speed, and is ideal for difficult-to-access applications.

The 7536 model of Avdel speed fastening tools is a high performance, hydro-pneumatic rivet tool with a separate intensifier offering consistent and reliable fastener placement maximizing operator productivity. With its long-reach barrel, the 7536 is an ideal choice for limited-access jobs.

Highlights

  • Barrel design is ideal for hard-to-reach applications
  • Can be suspended from a balancer with optional equipment
  • Can be used in many difficult access applications
  • Consistent actuation and hence joint formation
  • Control box and air cursor for use of small diameter fastenings
  • Ease of maintenance
  • High placement speed
  • Lightweight tool with separate intensifier
  • Optimized ergonomic performance for improved productivity
  • Reduced operator fatigue
  • Uses the same placing equipment and co mmon parts of our 7530 tool

Avdel 7536 Air Rivet Gun / Speed Fastening Tool

The Avdel 7536 Air Rivet Gun / Speed Fastening Tool sets 1.6mm (1/16″) Avlug® speed fasteners at high-speed, and is ideal for difficult-to-access applications.

MFR Part # 7536

Full Description

The Avdel 7536 Air Rivet Gun / Speed Fastening Tool sets 1.6mm (1/16") Avlug® speed fasteners at high-speed, and is ideal for difficult-to-access applications.

The 7536 model of Avdel speed fastening tools is a high performance, hydro-pneumatic rivet tool with a separate intensifier offering consistent and reliable fastener placement maximizing operator productivity. With its long-reach barrel, the 7536 is an ideal choice for limited-access jobs.

Highlights

  • Barrel design is ideal for hard-to-reach applications
  • Can be suspended from a balancer with optional equipment
  • Can be used in many difficult access applications
  • Consistent actuation and hence joint formation
  • Control box and air cursor for use of small diameter fastenings
  • Ease of maintenance
  • High placement speed
  • Lightweight tool with separate intensifier
  • Optimized ergonomic performance for improved productivity
  • Reduced operator fatigue
  • Uses the same placing equipment and co mmon parts of our 7530 tool

Parameters / Specs

Required Air Pressure 5-7 bar (80-100 psi)
Cycle Time 1.0 second
Free Air Volume 2.6 liters at 5.5 bar
Intensification Ratio 32:1
Noise Level 70 dB(A)
Pull Force @ 5.5 bar 3.89 kN (875 lbf)
Sets Avlug
Stroke 25 mm (0.89 in) min.
Type Pneumatic
Weight 2.6lbs (pistol only)
