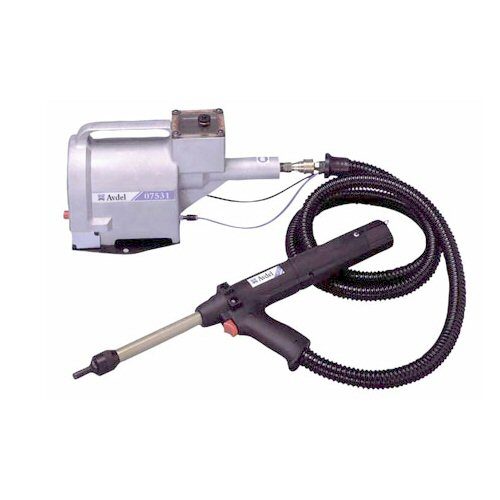

Avdel 753 Speed Fastening Tool

The Avdel 753 Air Rivet Gun / Speed Fastening Tool sets up to 1,500 fasteners hourly, and provides good access in hard-to-reach areas.

The 753 model of Avdel speed fastening tools is a high performance, hydro-pneumatic power tool designed specifically for rapid placement of speed fasteners in all sizes except the 1.6mm Avlug® which uses the 7536 speed fastening tool.

Highlights

  • Durable, heavy duty consctruction for most industrial environments
  • High capacity, magazine fed fasteners reduces handling
  • Long life, self-priming intensifier, consistent actuation
  • Long reach barrel can be used in difficult access applications
  • Minimal maintenance required
  • Optional equipment allows tool to be suspended from a balancer for one-hand operation
  • Reduced fatigue – ergonomic, lightweight, low actuation recoil
  • Sets 1,500 fasteners hourly
  • Short barrel option – allows operation in areas with space limitations
  • Training not required
  • Under 2-second cycle time

Avdel 753 Air Rivet Gun / Speed Fastening Tool

The Avdel 753 Air Rivet Gun / Speed Fastening Tool sets up to 1,500 fasteners hourly, and provides good access in hard-to-reach areas.

MFR Part # 753

Full Description

The Avdel 753 Air Rivet Gun / Speed Fastening Tool sets up to 1,500 fasteners hourly, and provides good access in hard-to-reach areas.

The 753 model of Avdel speed fastening tools is a high performance, hydro-pneumatic power tool designed specifically for rapid placement of speed fasteners in all sizes except the 1.6mm Avlug® which uses the 7536 speed fastening tool.

Highlights

  • Durable, heavy duty consctruction for most industrial environments
  • High capacity, magazine fed fasteners reduces handling
  • Long life, self-priming intensifier, consistent actuation
  • Long reach barrel can be used in difficult access applications
  • Minimal maintenance required
  • Optional equipment allows tool to be suspended from a balancer for one-hand operation
  • Reduced fatigue - ergonomic, lightweight, low actuation recoil
  • Sets 1,500 fasteners hourly
  • Short barrel option - allows operation in areas with space limitations
  • Training not required
  • Under 2-second cycle time

Parameters / Specs

Cycle Time 1.0 second
Free Air Volume @ 5.1 bar / 75 lbf/in² – 2.6 liters (0.09ft²)
Head Assembly Width 51 mm (2in)
Intensification Ratio 32:1
Length 475 mm (18.7in)
Noise Level 70 dB(A)
Pull Force 3.89 kN (875 lbf) at 5.5 bar / 80 lbf/in²
Required Air Pressure 5-7 bar (80-100 psi)
Stroke 30 mm (1.18in)
Type Pneumatic
Weight 2.65 lbs (pistol only)
